Bilz Anti Vibration Wedge Mounts: Precision, Stability & Adaptability MachinesAnti Vibration Mounts

In today’s fast-evolving industrial landscape, where precision and performance go hand in hand, the importance of machine foundation and alignment cannot be overstated. As manufacturers strive for higher accuracy and productivity, the stability of the machine base plays a critical role. Enter Bilz Anti Vibration Wedge Mounts—a trusted and proven solution that ensures superior machine leveling, vibration damping, and long-term reliability across industries.

Engineering Confidence with Every Installation

Bilz precision wedge mounts (also known as precision leveling wedges) are the foundation under some of the most demanding machines across sectors like metalworking, packaging, plastics, laser technology, electronics, and semiconductor manufacturing.

Designed for high-load applications—with capacities up to 100 tons per wedge—these mounts provide exceptional stiffness and accuracy in leveling, offering fine adjustment with a resolution of up to 1/100 mm. The solid wedge design ensures wide-area contact with the machine bed, significantly enhancing vibration and structure-borne noise insulation, critical for machines sensitive to environmental disturbances.

Stability that Holds Under Pressure

What sets Bilz Anti Vibration wedge mounts apart is their self-locking leveling mechanism. Once set, the leveling bolt remains firmly in position, even under continuous dynamic loads or machine vibrations. This feature eliminates the risk of gradual settling or misalignment over time, ensuring long-term geometric integrity of the machine alignment.

This makes Bilz Anti Vibration wedge mounts a preferred choice not only for new installations but also for retrofitting existing machines where stability has become a concern.

Flexible Configurations to Suit Every Need

Bilz offers a wide range of mounting styles, making the system adaptable to virtually any installation requirement:

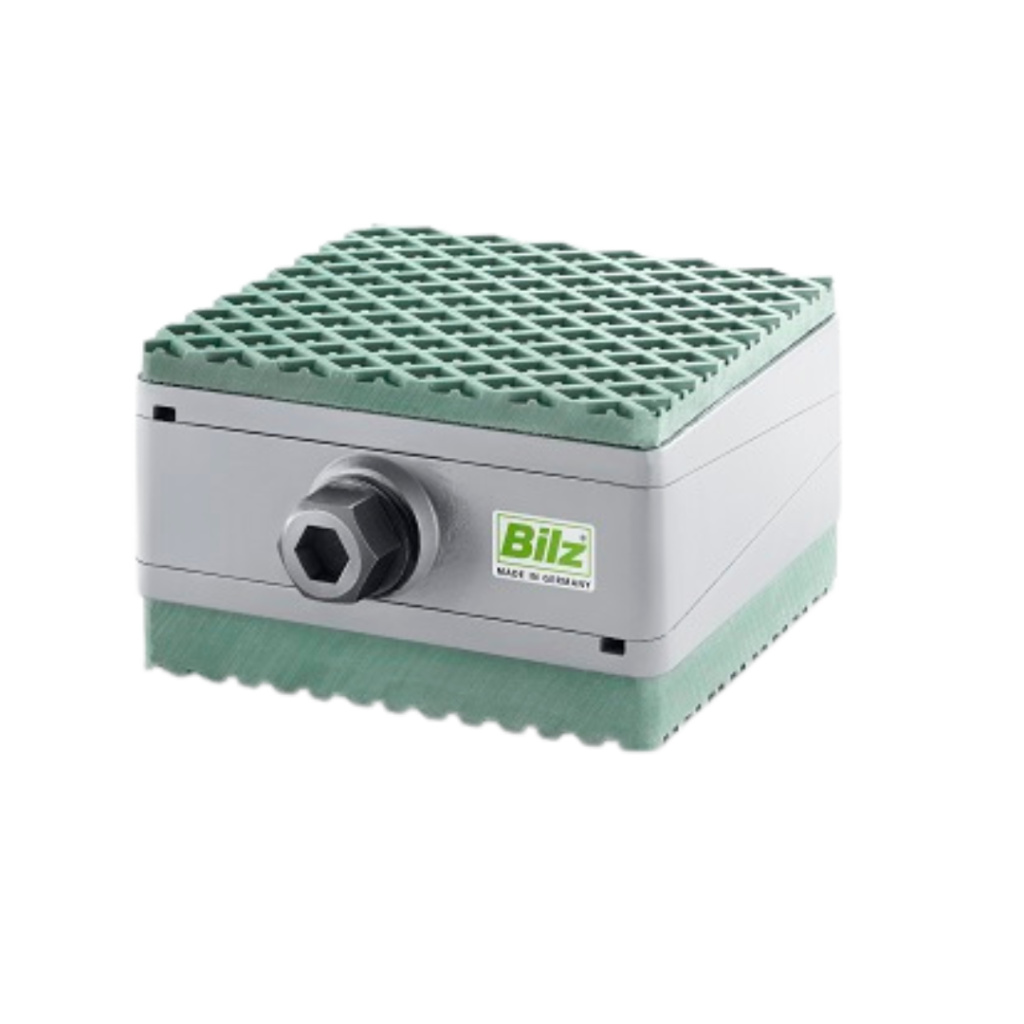

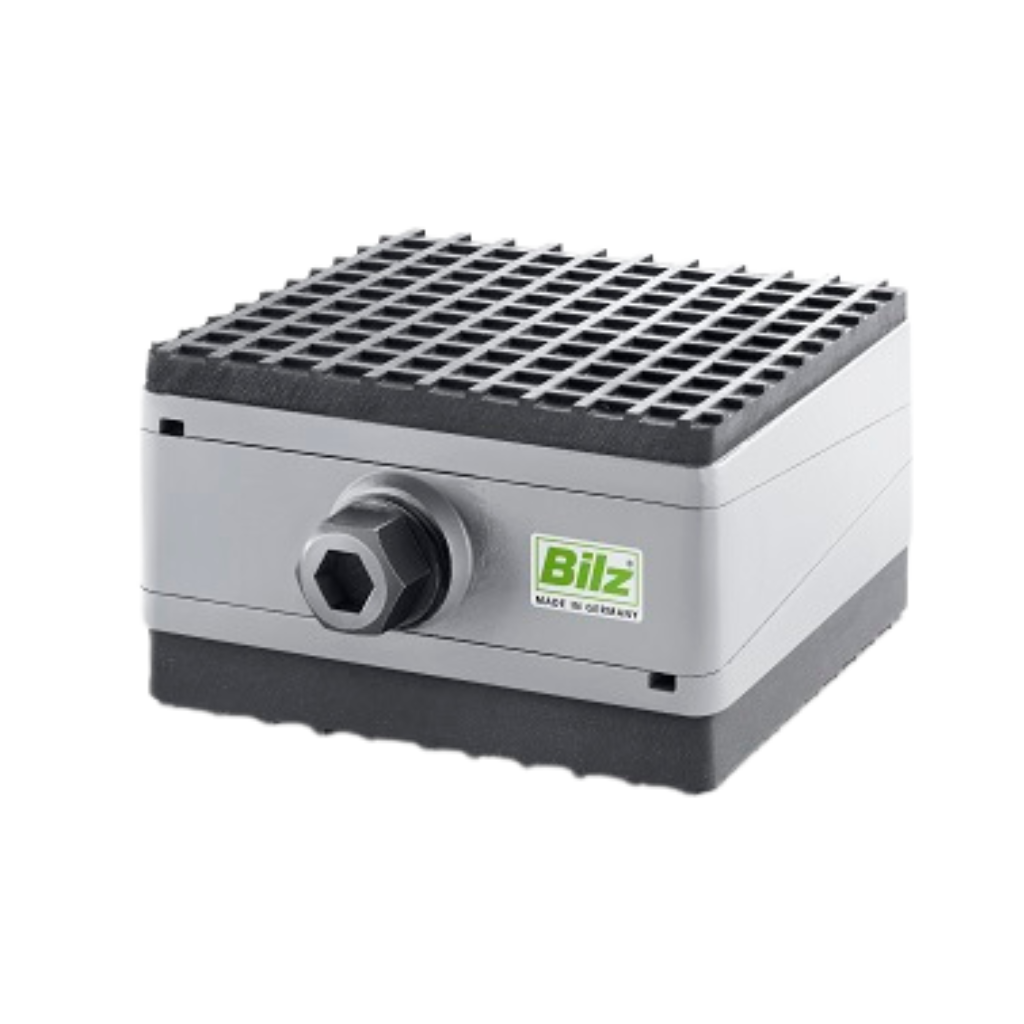

PK Series – Free-standing solution ideal for machines without mounting holes.
PKA Series – Bolt-on style, ideal for machines that may be relocated; wedges remain attached during lifting.

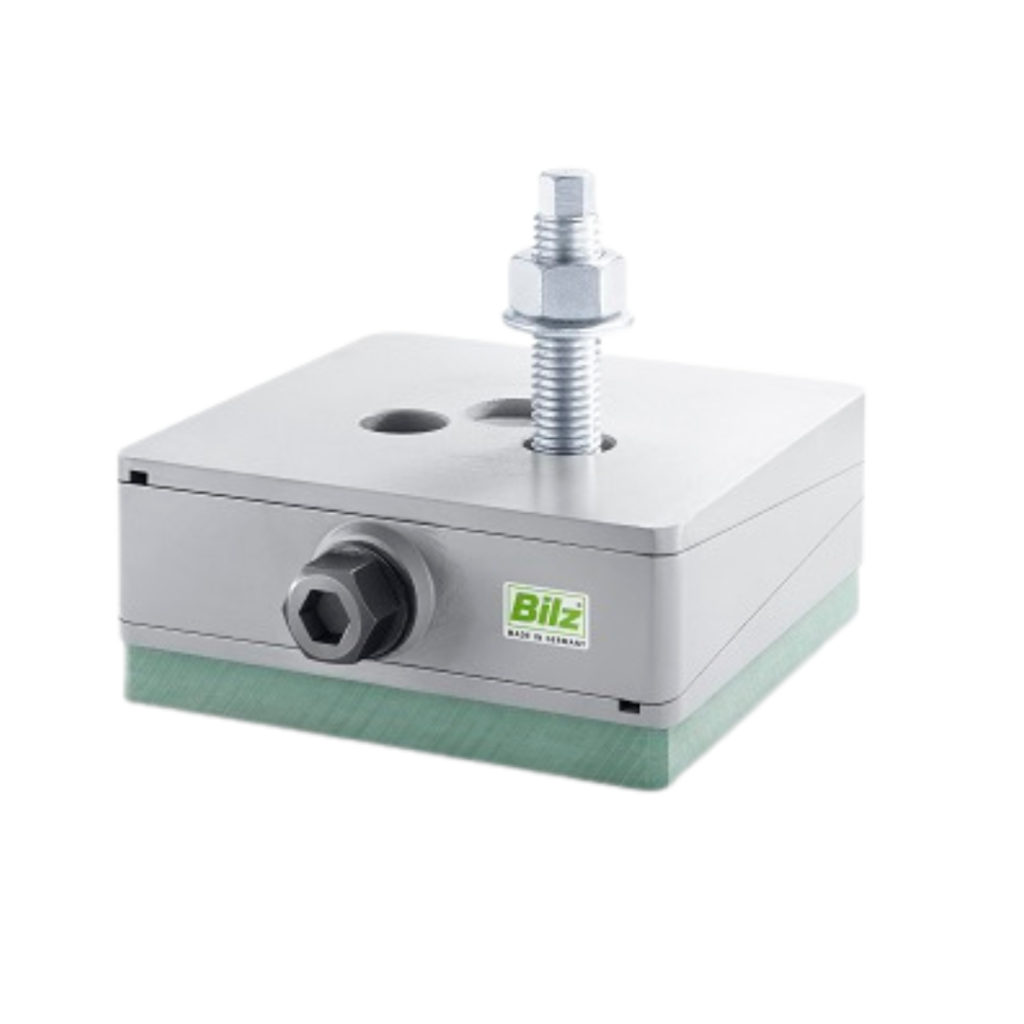

PKD Series – Bolt-through mounts for machines requiring anchoring due to high center of gravity or heavy dynamic forces.

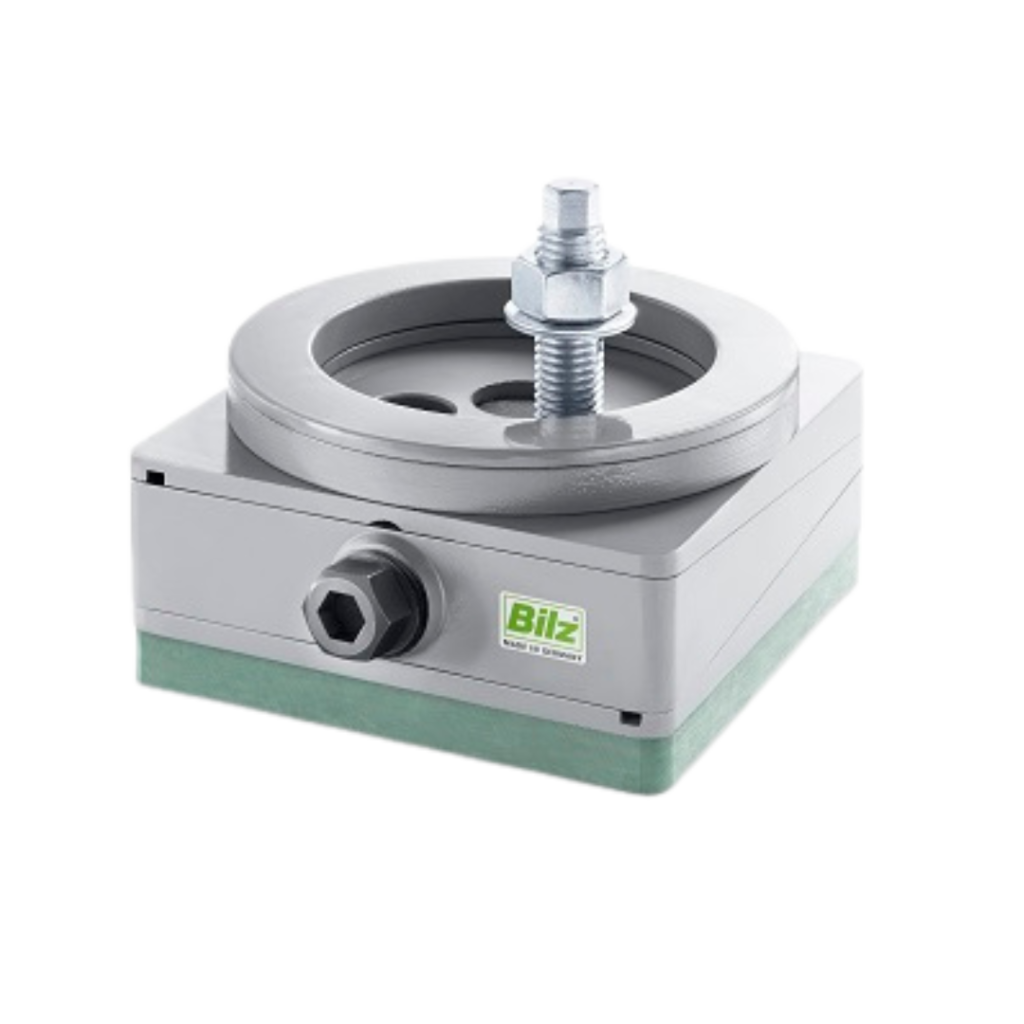

PKAK/PKDK Spherical Seat Series – For situations where the machine bed or floor is not perfectly flat. The spherical design compensates for angular differences, ensuring full-surface contact without stress.

This modularity ensures that whether it’s a precision lathe, injection molding machine, metrology equipment, or a heavy-duty press, Bilz has a wedge solution that fits the application perfectly.

Built for Demanding Environments

Bilz also understands that industrial requirements vary greatly. That’s why their wedge mounts are available in multiple materials and finish options:

Standard steel for general industry applications.
Hard-anodized aluminum (PKA-AL, PKD-AL) for EMC and cleanroom conditions—offering wear-resistant surfaces up to 600 HV.
Stainless steel (PKA-VA, PKD-VA) for corrosion resistance in hygienic industries like food processing, pharmaceuticals, or chemical processing.

In addition to standard height ranges, custom wedge heights and designs are available upon request, making them suitable for special machine bed configurations or retrofitting older equipment.

Elevating Performance Across Industries

The advantages of using Bilz Anti Vibration wedge mounts extend far beyond installation:

Improved machining accuracy due to minimized vibration and stable alignment.
Reduced maintenance by protecting sensitive components from vibration-induced fatigue.
Safer work environments, thanks to greater machine stability and reduced resonance.
Faster setup and commissioning, saving time during machine installation or relocation.

Whether it’s a cleanroom in a semiconductor facility or a high-vibration manufacturing shop floor, Bilz Anti-vibration wedge mounts ensure machines perform at their best—day in and day out.

Conclusion

Precision leveling wedges from Bilz are more than just mounting accessories—they are integral to achieving dimensional stability, vibration control, and machine longevity. With a wide range of models, materials, and customization possibilities, Bilz continues to set the benchmark for machine mounting solutions across the globe.

For companies looking to optimize their machine installations, minimize downtime, and improve process consistency, Bilz Anti Vibration Wedge Mounts represent a smart and future-ready investment.

For more information or to discuss your specific requirements, reach out to us at www.antivibrations.com/contact/
